- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Kingbel
- Model Number: K50
- Battery life: Above 18000times in normal
- card type: ID card or MIFARE-1 card
- Dynamic Current: < 150mA
- Card Distance: 30 mm
- Material: Zinc alloy
- Color: Bronze & Red Bronze & PVD Golden & PVD Silvery & pearl chrome
- Certificate: CE RoHS SGS FCC
- Application: Apartment & hotel
- Size: 353*78mm
Packaging & Delivery
|Packaging Details:||Standard Package for digital biometric fingerprint door lock:
|Delivery Detail:||Shipped in 10 days after payment|

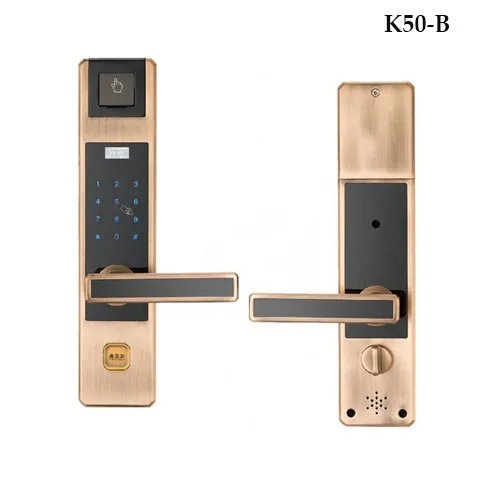

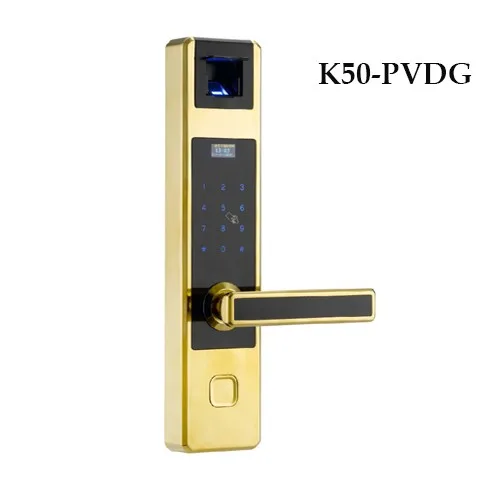

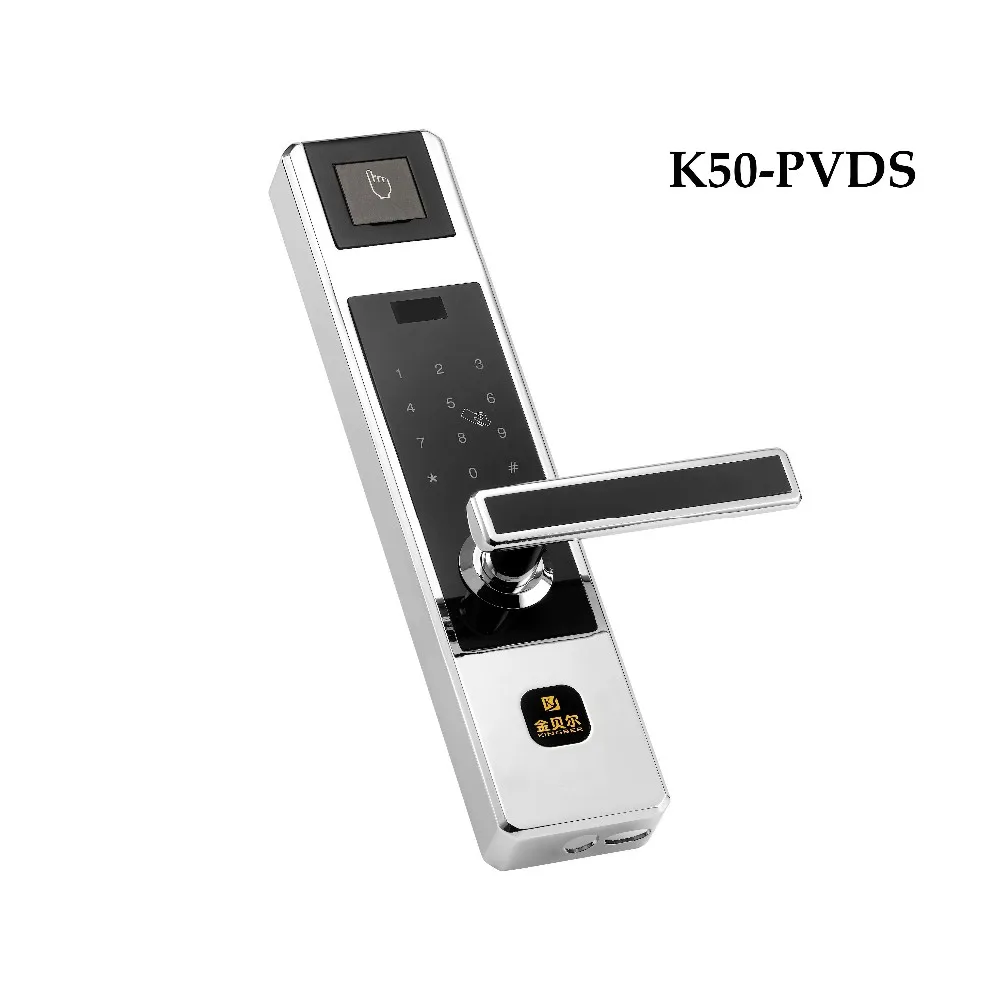

K50 series Korean advanced digital biometric fingerprint door lock with touch screen technology
digital biometric fingerprint door lock (K50):
- Keys supported includes: Fingerprint, PIN and mechanical keys
- Centralized management: the fingerprints can only be registered or deleted by administrative key owners.
- Two operation mode: safe mode and general mode.
- Manual locking status can be set for meeting and events .
- Stand-alone management.
- Battery power supply, Low voltage alert.
- Standard modularized structure for simple installation.
|K50 Technical Parameters|
|Normally Open Mode||Fingerprint/Password/IC card|
|Spare Open Mode||Mechanical Keys|
|Fingerprint Sensor||Optical or Semiconductor|
|Fingerprint detection||Living Fingerprint|
|Panel Process||Whole Casting|
|Tongue Material||304 Stainless Steel|
|Working Voltage||DC3.5-6.5v,(4segments 5 alkaline battery)|
|Emergency power supply||9 Volt Battery|
|Display Screen Type||LCD|
|Read card time||<0.1s|
|Password Capacity||10 groups|
|Password Input||Anti peep input|
|Digits of Password||4-8 numbers|
|IC Card capacity||10 Pieces|
|Power supply||DC 4.8-6V|
|Suitable Door Thickness||40MM to 120MM|
|Lock center distance||60MM|
Structure Details View:
Fingerprint Password lock circuit:
1. Performance index:
- Working voltage:6 volts (4 AA alkaline batteries )4.7V Alarm
- Start time: less than 1 second
- Fingerprint capacity:30
- Acquisition size: 18.2mm*18.2mm
- Check time: according to the number of fingerprint logged
- Static power consumption: < 30 μA
- Working condition: < 300MA
2. System characteristics
- Powe-on detection mode:Microwave
- Testing five times per second, fingerprint matching time less than 1 second
- It is convenient and flexible to set up and cancel the cards
How to installation:
Safety & Attention Notice for our lock:
- Please change Administrator Fingerprint and PIN right after installation, to avoid illegala ccess with default fingerprint or PIN.
- Each fingerprint/PIN is required to be scanned or inputted twice when registering.
- When the low voltage indicator is on, please change the batteries.
- Keep the lock away from any corrosive matter which may damage the lock surface
- Proper installation is required for the lock’s normal working. Please make sure the lock is installed properly and professionally.
Package of our fingerprint door lock
Fingerprint password door lock functions:
- Against stealing with alarm function:
- Against illegal unlocking trial
- Locking inside
- Low voltage alarm
- Alternative silent mode
- 90° fingerprint discernment
- OLED screen display
- Anti-saw password input
- Intelligent self-diagnosis function
